Automatic Packer

VIRTUO

The Virtuo is the most advanced automatic folder-gluer packer for solid and corrugated board on the market.

Covered by US Patent No. 6594974 and Canada Patent No. 2401088

It stands out for its simplicity and versatility and is the most compact, economical packer on the market. Available in several versions, the Virtuo handles various formats (medium to very large) and types of boxes (straight line, 4/6 corners and crash-lock bottom) packed in one row and one layer.

For still more versatility, the Virtuo automatic folder-gluer packer can be combined with various IMPACK modules.
  • Add an IN3 box turner for high flexibility in choosing the orientation of the boxes in the case.
  • Add the MFA inversion module for automatic crash-lock bottom packing of boxes made of carton board.
  • Add the Automatic Case-Feeder to reach full autonomy of the Virtuo packer.
IN3-Virtuo-ACF_With-flap-opener_small

Automatic Folder-Gluer

Packer Virtuo in action



Watch the Virtuo with IN3 box turner and fully Automatic Case Feeder in action.

Fully-Automatic Virtuo Packer

VIRTUO Features

  • The most compact automatic folder-gluer packer on the market;
  • Medium to very large formats;

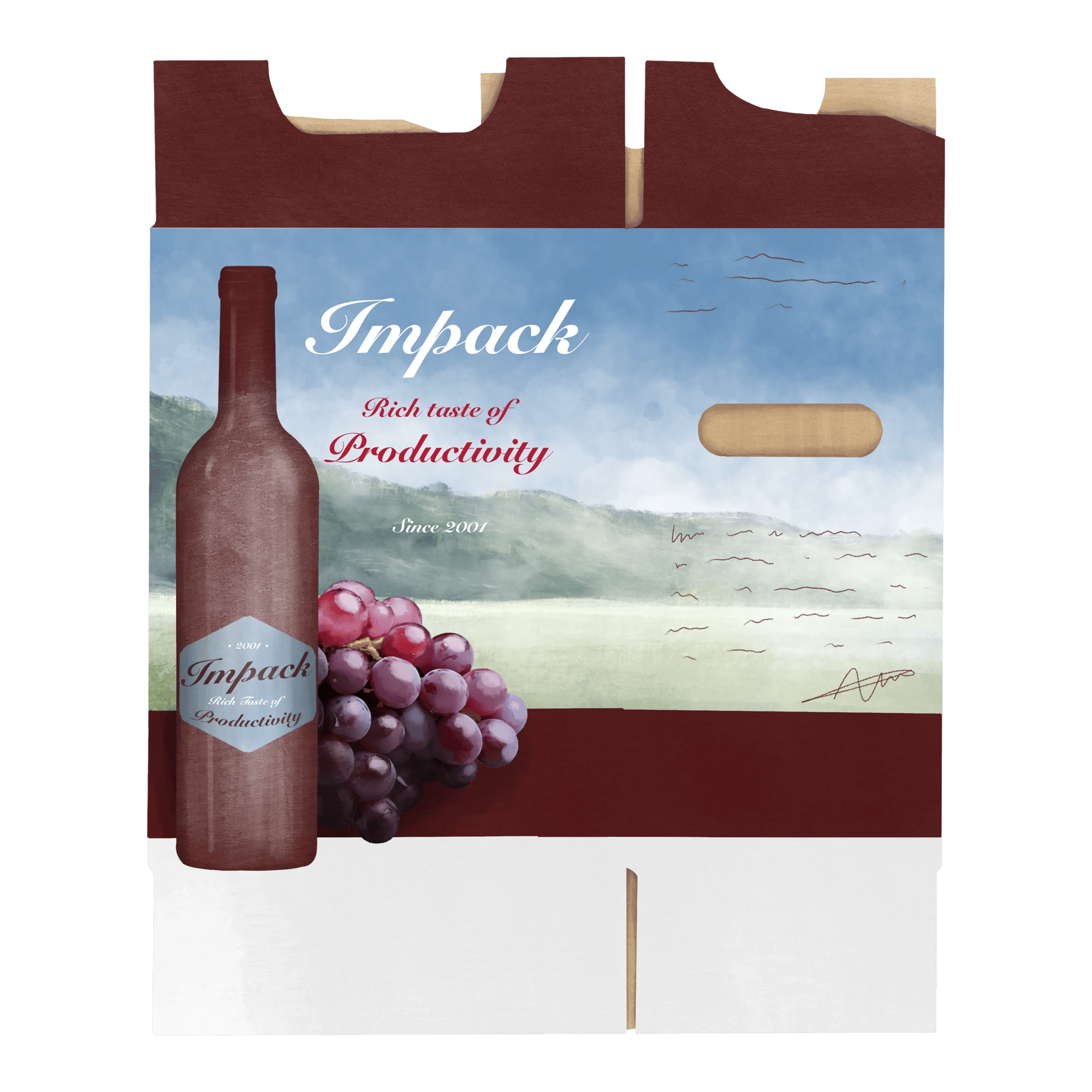

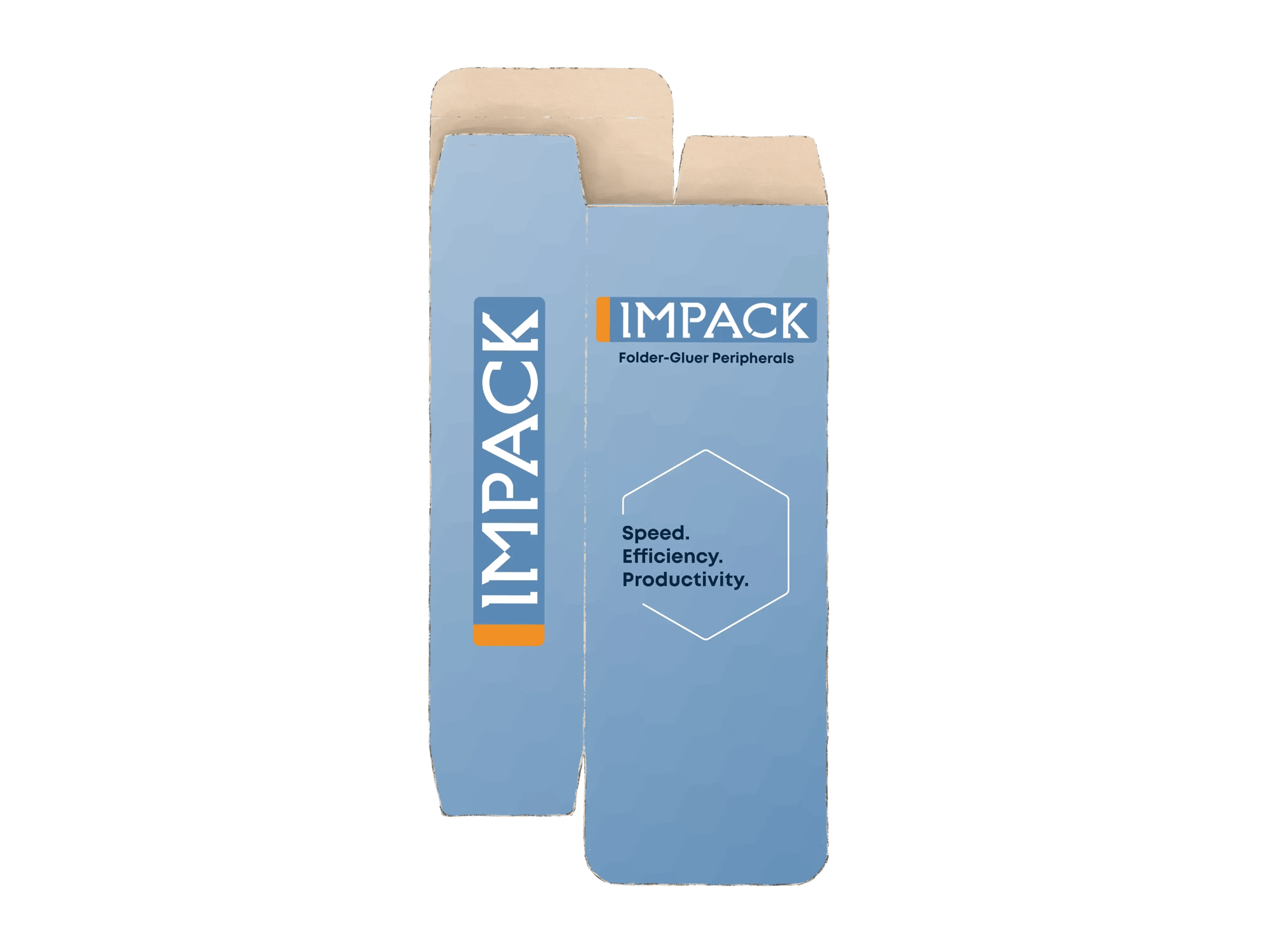

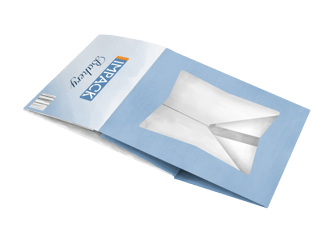

  • Straight line, 4/6 corners and crash-lock bottom;
  • Compatible with carton and corrugated board;
  • Packing of one row and one layer;
  • Speed: up to 8 cases a minute;
  • Short setup time;
  • High-precision laser counter;
  • Case loader;
  • Touchscreen interface.

Case dimensions - Half slotted container (HSC)



Width
Length
Height
Virtuo
Min
200 mm
8 in
255 mm
10 in
205 mm
8 in
Max
750 mm
29.5 in
840 mm
33 in
545 mm
21.5 in
Diagonal
Max
900 mm
35.5 in
Virtuo Basic
Min
"
"
260 mm
10.25 in
Max
"
760 mm
30 in
"
Diagonal
Max
820 mm
32.25 in
7-1-1

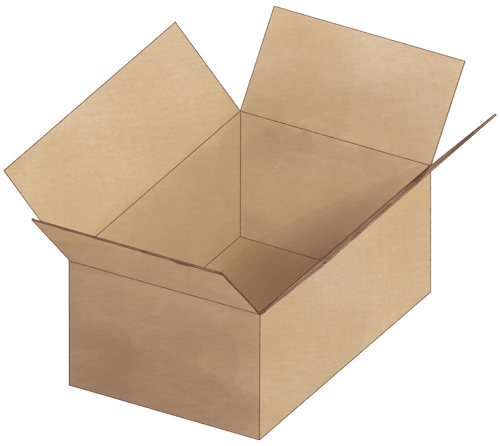

Case dimensions - Regular slotted container (RSC)



Width
Length
Height
Virtuo
Min
200 mm
8 in
255 mm
10 in
205 mm
8 in
Max
750 mm
29.5 in
760 mm
30 in
545 mm
21.5 in
Diagonal
Max
900 mm
35.5 in
Virtuo Basic
Min
"
"
260 mm
10.25 in
Max
"
680 mm
26.75 in
"
Diagonal
Max
820 mm
32.25 in
7-2

Virtuo dimensions



Length
Width
Height
Virtuo
4235 mm
167 in
1925 mm
76 in
2410 mm
95 in

*The accumulation convoyer's length is 1830mm (72 in). The distance between 2 cases is at least 50mm (2 in). Depending on the case's length, up to 6 cases can stay on the convoyer at the same time.
